Installation, Configuration and Operation of Hardware > Installation and Configuration of Additional Devices > Hanwell IceSpy > Hanwell IceSpy Sensor-Transmitters >> Dual Channel Type T Thermocouple
Hanwell Solutions Product Code
Description
•Product Family: NP3200 series

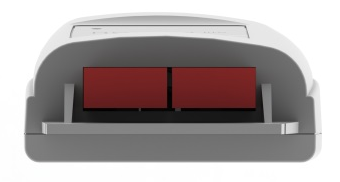

•Dual thermocouple base connector.
•Similar to the Single Channel Type T Thermocouple, but with the addition of a second external Type T thermocouple channel.
•Add it to the System as a Single Channel Linear Sensor.
•Accuracy (unadjusted specification):
➢0°C to 120°C +/-0.5°C
➢-100°C to 0°C +/- 1°C
➢-200°C to -100°C +/-1.5°C
•Example IN-TT001/002F1 Datasheet: https://hanwell.com/app/uploads/IN-TT001_002F1-datasheet-v1-UK.pdf
