Hanwell Solutions Product Code
Description
•Product Family: NP3100 series

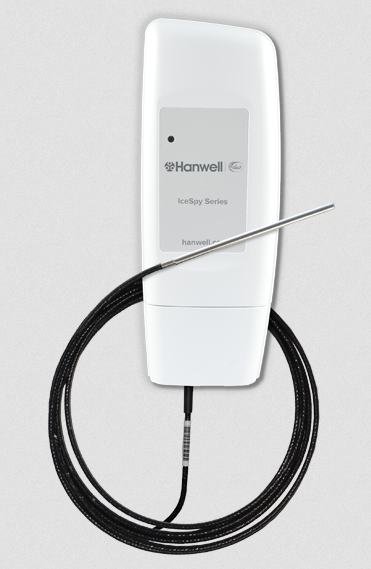

•Similar to the Single Channel, Air Temperature, Internal transmitter, but with the internal thermistor being replaced by a single external 4-wire Class A PT100 probe.
➢Used to measure temperature at a specific point, typically inside a freezer.
➢This Unit can withstand a much wider temperature range that an internal thermistor.
•Range -100°C to +200°C.
•Resolution 0.1°C.
•Accuracy ± 0.1°C calibrated.
•PT100 Probe Class A accuracy un-calibrated.

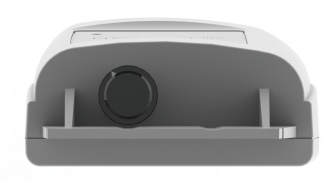

•Probe connected via a waterproof connector.
•Example IN-PT001/002F1 Datasheet: https://hanwell.com/app/uploads/IN-PT001_002-F1-v1-uk.pdf
