Installation, Configuration and Operation of Hardware > Installation and Configuration of Additional Devices > Hanwell IceSpy > Hanwell IceSpy Sensor-Transmitters >> Single Channel Type T Thermocouple + Door Switch
Hanwell Solutions Product Code
Description
•Product Family: NP3200 series

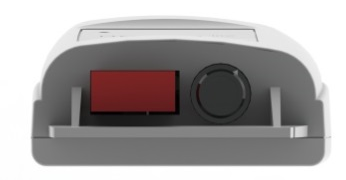

•Single thermocouple base connector.

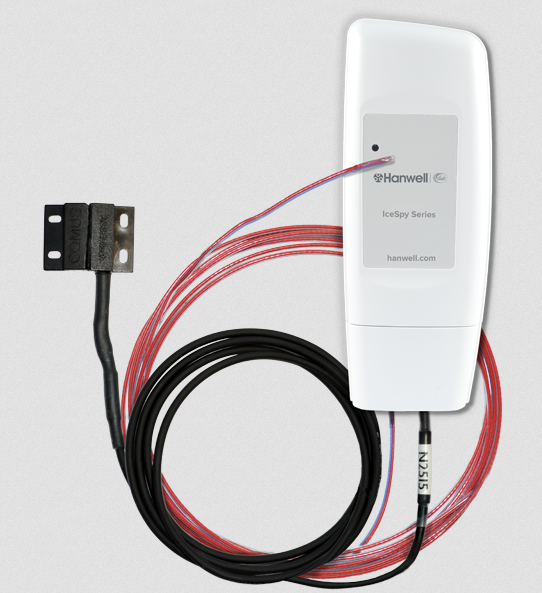

•Similar to the Single Channel Type T Thermocouple, but with door monitoring and alarm function.
•Range -200°C to +350°C
•Resolution 0.3°C
•Accuracy (unadjusted specification):
➢0°C to 120°C +/-0.5°C
➢-100°C to 0°C +/- 1°C
➢-200°C to -100°C +/-1.5°C
•IP53
•Example IN-TTD01F1 Datasheet: https://hanwell.com/app/uploads/IN-TTD01F1-datasheet-V2-UK.pdf
