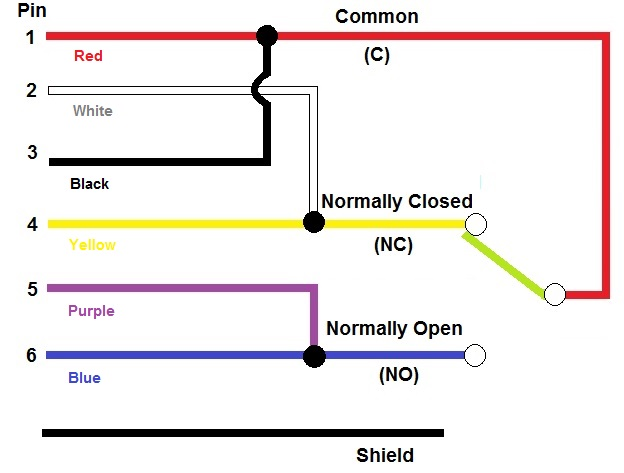

Figure 228



•Pins 1 and 3, 2 and 4, 5 and 6 are internally connected together in pairs to increase the current carrying capacity. See Figure  228 above.

•The shield wire is internally connected to GND. See Figure  228 above.

•Both relays have the same pinout and the cables are interchangeable.

•These relay outputs are suitable for low voltage switching.

Caution
Rating: Maximum Load 1A at 24V.
DO NOT exceed 50V.
Shield is connected to Unit's 0V rail.
