Wall Mounting
The SR2 Receiver's case has a key hole and two screw holes in its back plate. These should be used for wall-mounting the Unit. A drilling template is supplied.
Note: | We recommend the radio reception at the chosen location is thoroughly tested before final wall-mounting! |

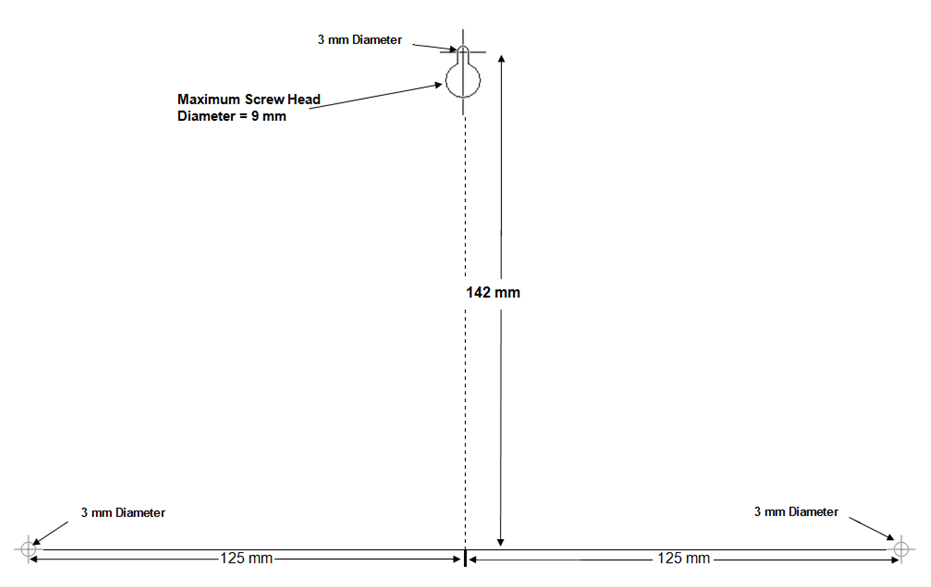

1.Use the Drilling Guide to position the screws. See Figure 158 below:
2.Mount the SR2 Receiver to the wall and screw into place.
Figure 158
