Physical Installation of the ARB Module

Install Step


1.Using the mounting bracket as a drilling template, drill holes for the receiver wall mounting bracket into the wall at an appropriate location.

2.Using the spacers provided to give clearance, screw the mounting bracket to the wall.

When mounting the ARB Module, you should bear in mind that you will need to run cables from the receiver to the mains power supply and to your network socket, also RS485 connections may be present.

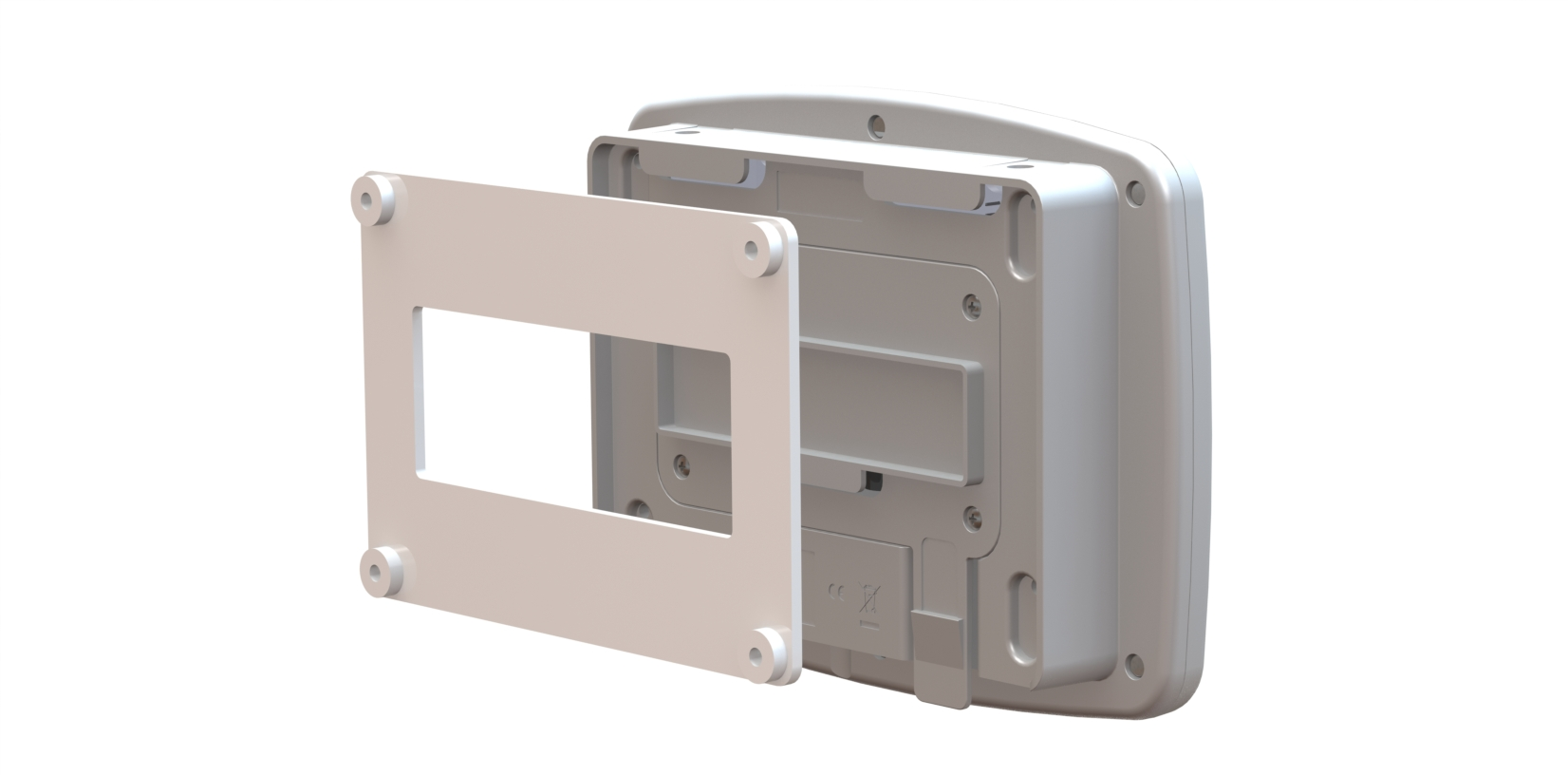

ARB Mounting

3.Attach the ARB Module to the mounting bracket.

4.Using the supplied Ethernet cable, connect the Receiver to your Network connection if you have one.

5.Using the supplied cable, connect the ARB Module to the mains power supply.
