Navigation:

Archive and Backup >> Service Connection

Service Connection

WARNING:
This feature is intended for use by Hanwell Service personnel.
DO NOT make changes unless necessary.
Entering incorrect Service Connection values will break the connection between the application and the EMSArchiveService and lead to loss of functionality.



1.Select the Service Connection menu item from the Archive menu.

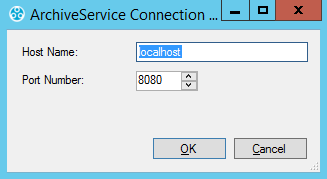

The Archive Service Connection Entry dialog is displayed. See Figure 1401 below:

Figure 1401

ArchiveService Connection Entry

2.Enter the required Host Name and Port Number:

The Host Name is the resolvable name or IP address of the machine running the EMSArchiveService.

The Port Number is the port used by the Archive service, this must match the ArchiveServicePort element value set in the EMSArchiveService’s setup.xml file.
