Hanwell IceSpy Echo Repeater Module

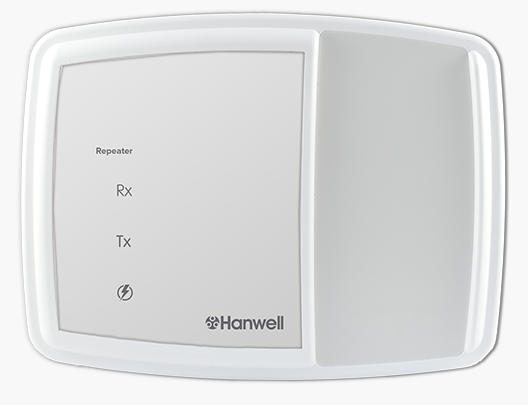

Figure 178
Hanwell IceSpy Echo Repeater Module

Functionality

Key Features

Connectors

Functionality

The Hanwell IceSpy Repeater Module is an optional add-on to a Hanwell IceSpy System, providing extended one-way radio communication (broadcast only) between Transmitter/Sensor Units, additional Hanwell IceSpy Repeater Modules and Network Receiver(s).

Hanwell IceSpy radio transmitter/Sensors have a range of up to 300 meters over open ground; each Hanwell IceSpy Repeater Module can extend a System's radio range by up to a further 300 meters over open ground. See Figure 179 below:

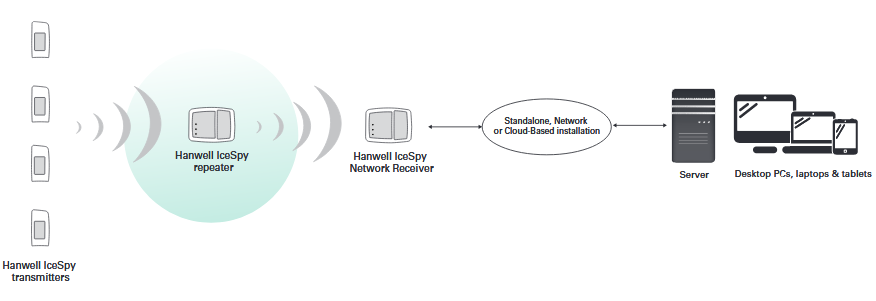

IceSpy Repeater Schematic

Figure 179
Hanwell IceSpy Echo Repeater Module Schematic

Key Features

Hanwell Solutions Part Number: IN-RP002F* (* refers to the product approval: 1 is Europe, 2 is FCC and 8 is IC (Canada))

Wall mountable.

Green LED for power (normal state on), red LED to indicate signal being received, 1 yellow LED to indicate signal being transmitted.

Mains powered from supplied adapter.

A backup power supply, which can last up to 3 days, in case of power failure.

IP53 rated.

Connectors

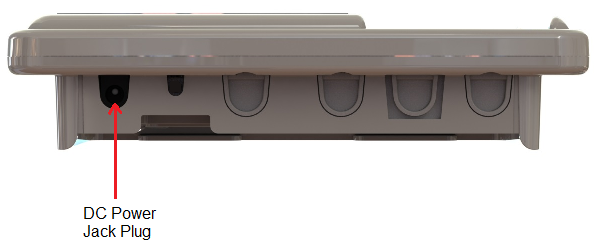

IceSpy Repeter Module Connectors
