The SMS Log contains entries for all System SMS Activity.

Accessing the SMS Log

Searching Previous SMS Logs

Navigating SMS Log Entries

Accessing the SMS Log

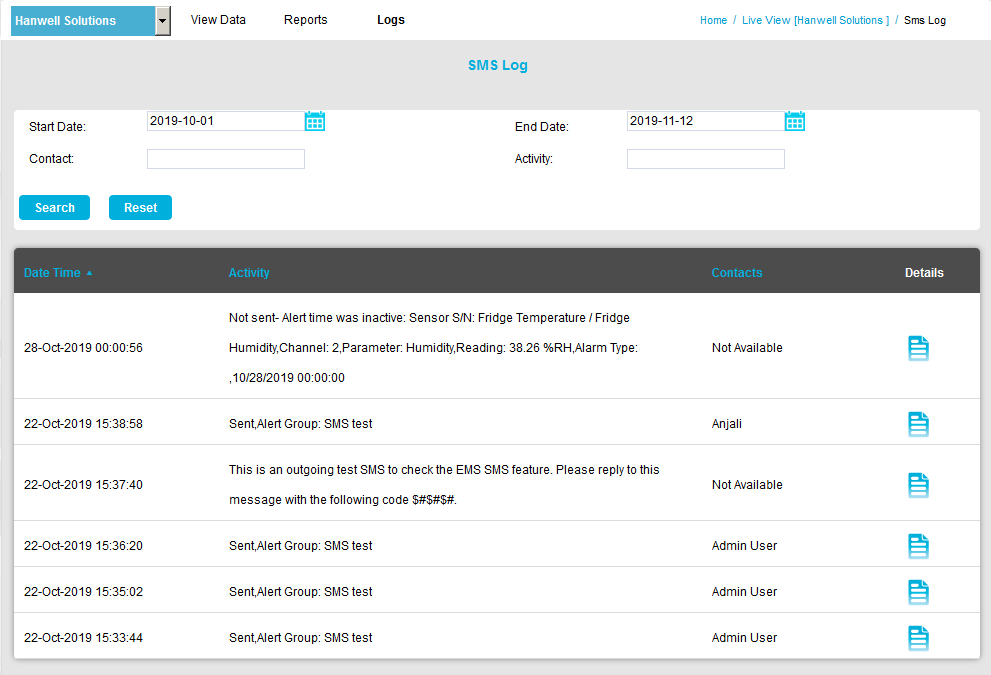

1.Select SMS Log from the Logs entry on the main menu bar to display the SMS Log window. See Figure 1409 below:

Figure 1409

SMS Log Window

The SMS Log contains a Date and Time Stamp for each SMS Log entry, Activity details, Contact details and a Details field.

2.Click on the Details icon for the required SMS Log.

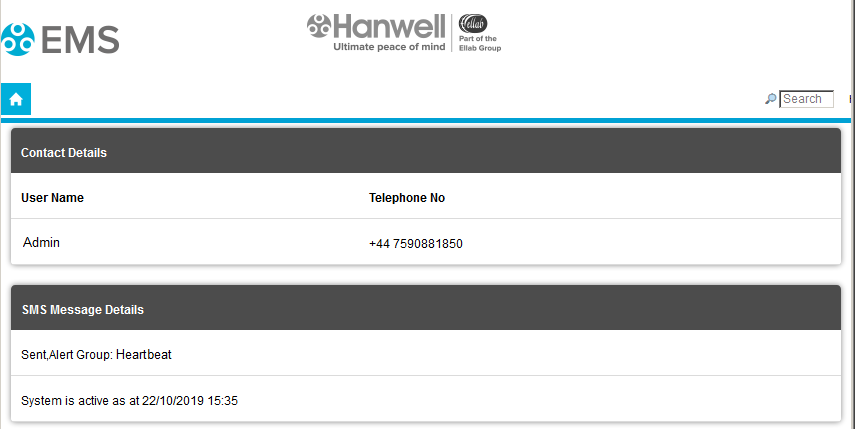

The SMS Activity Details field is displayed, containing details of the message sent including the User Name and Telephone No. that the SMS message was delivered to.
See Figure 1410 below showing, as an example, a regular System Heartbeat message, sent to the Admin User:

Figure 1410

SMS Activity Details

Searching Previous SMS Logs

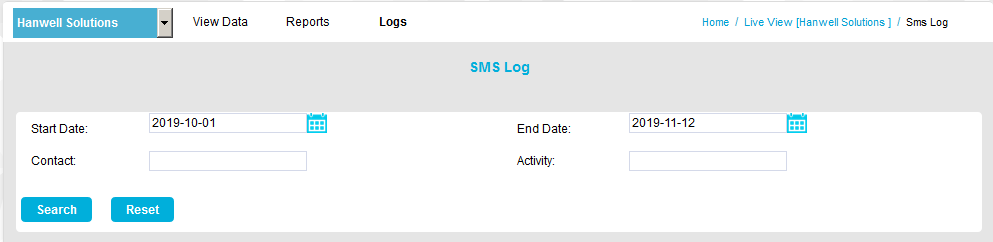

1.Use the two calendars to select a Start and End Date or enter the Start and End Dates (in the format yyyy-mm-dd) into the Start Date: and End Date: dialog boxes.

2.Click on the Search button. See Figure 1411 below:

Figure 1411

SMS Log Search

3.All SMS Logs between these dates will be displayed.

Navigating SMS Log Entries

Use the single left and right arrows at the bottom of the page will step through one page at a time.

Use the double arrows to take you to either the first page or the last page of the search. See Figure 1412 below:

Figure 1412

Figure 244

Note: If there is only one page of SMS Log entries, the navigation arrows will not be shown.
If you are on the first or last page of SMS Log entries the left or right arrows (single or double) respectively will not be shown.
