In the event of radio data failure, EMS Sensors can backfill the last 6 days of data into the EMS database using using RFID communications.

Sensor Backfill

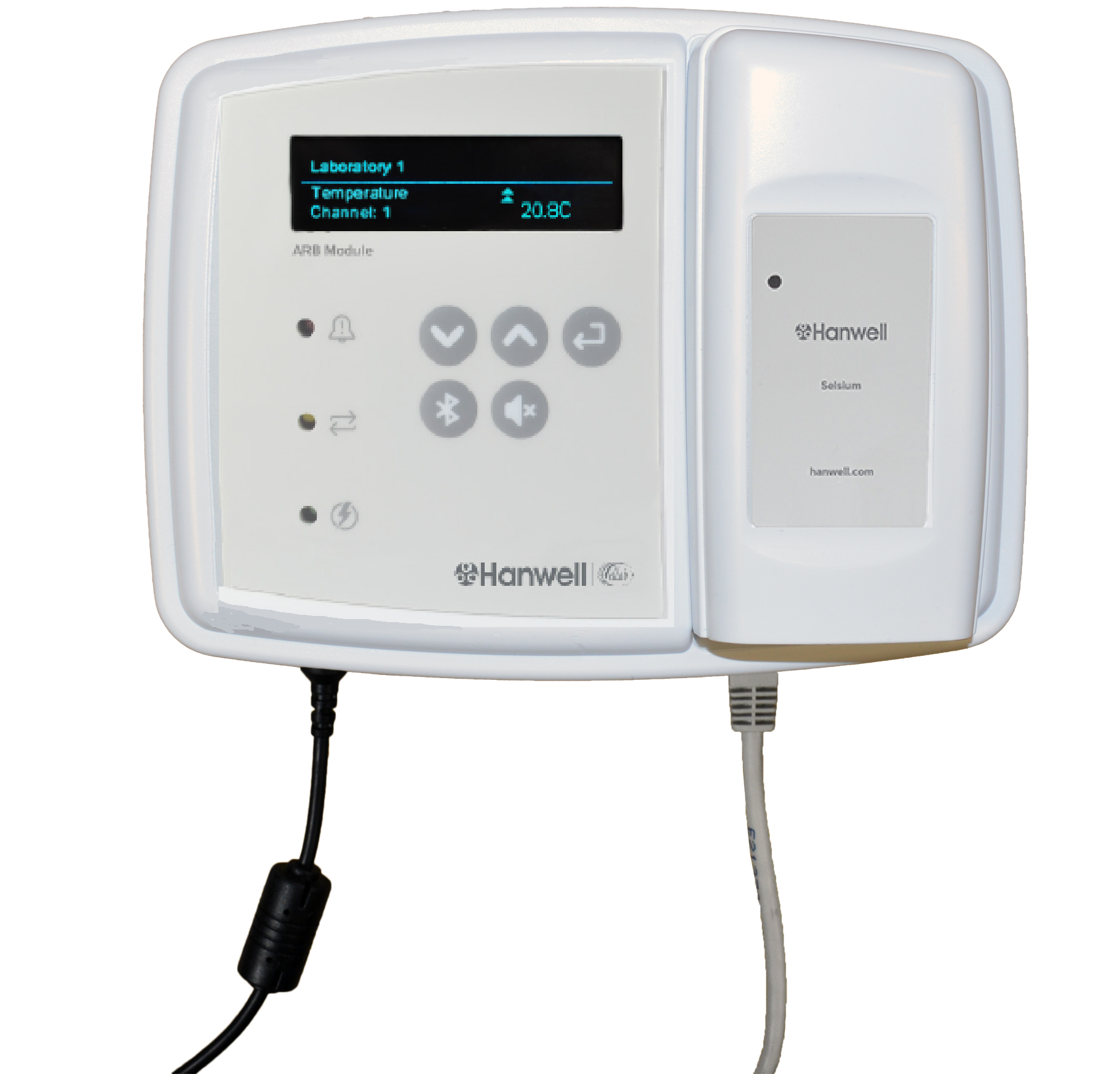

Place the Sensor in the RFID cradle on the ARB Module making sure the top of the Sensor is orientated towards the top of the ARB Module. See Figure 235 below:

Figure 235

RFID ARB Sensor

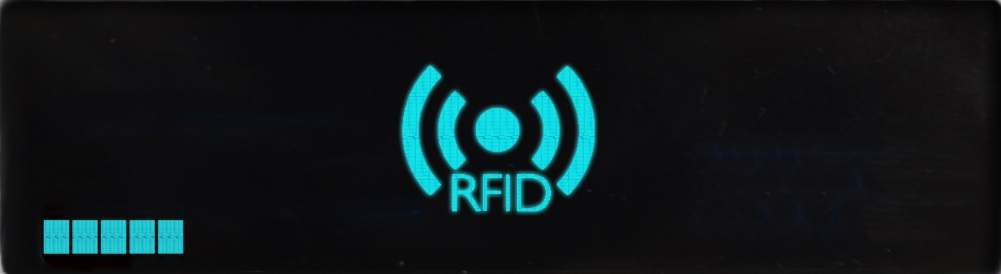

•The OLED display will show the RFID symbol in the centre of the display, with the Sensor serial number top left, and a progress indicator moving left to right along the bottom of the display. See Figure 236 below:

Figure 236

 ARB Unit RFID Symbol

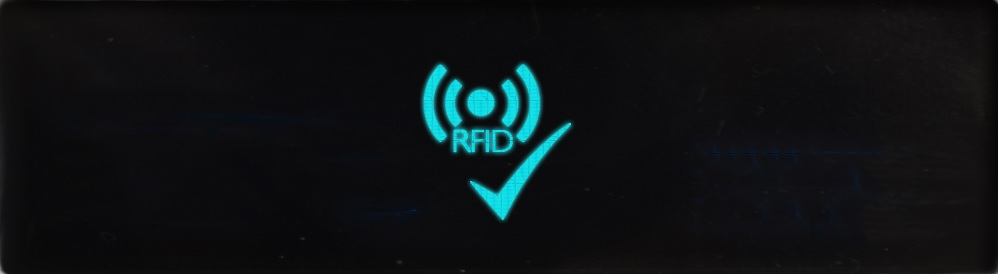

•When backfill is completed, the display will show the RFID symbol with a tick underneath. See Figure 237 below:

Figure 237

         ARB Unit RFID Complete

•Should the backfill fail, the RFID symbol will be displayed with a cross; in this case, remove the Sensor from the cradle and wait for the ARB Module to return to the normal state, before retrying the backfill operation.
