Installation, Configuration and Operation of Hardware > Installation and Configuration of Control Devices >> Hanwell IceSpy Network Receiver

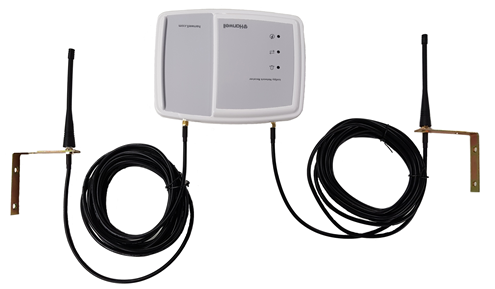

Figure 169
|

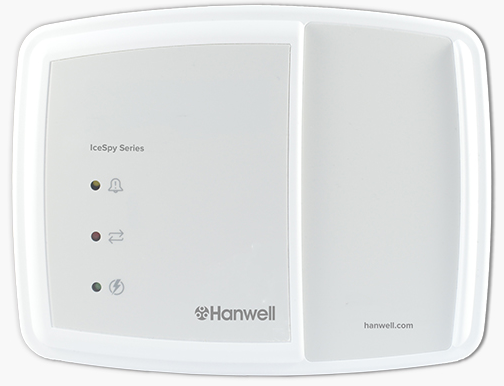

Figure 170 |
Hanwell IceSpy Network Receivers receive radio signals from Hanwell IceSpy Transmitters and pass them over a network to the EMS software.
Hanwell IceSpy Hybrid Network Receivers will also receive signals from IceSpy System 5 Scout transmitters, Hanwell IceSpy Legacy and Hanwell IceSpy transmitters.
•Hanwell Solutions Part Nos:
➢Hanwell IceSpy Network Receiver - IN-NR001x
➢Hanwell IceSpy Network Receiver Antenna version (Europe only) - IN-NR001F1-ANT
➢Hanwell IceSpy Hybrid Network Receiver - IN-HR001-x
Where x indicates the territory-specific frequency, for example F1 for Europe, F2 for USA; this notation will be used throughout this Help.
Key Features
•Wall mountable.
•Internal aerials as standard – external aerials are a factory-fitted option.
•Red LED for alarm (Normal state - OFF), green LED for power (Normal state - ON), yellow LED for communications (Normal state - ON). See also LEDs.
•Mains powered from a supplied adapter.
•TCP/IP communications.
•Two on-board Relays, one configured for alarm activation - driven by EMS Local Alarms, one for communications and power failure.
•RS485 output for optional Modbus or Hanwell Solutions MS1000 System Relay Cards - driven by EMS Local Alarms.
•Memory lasts for 5 days for up to 50 Sensors.
•IP53 rated.
