Hanwell IceSpy Receiver

Figure 174
IN-NR001F1/2



Network Receiver ANT

Figure 175
IN-NR001F1-ANT

Figure 176
Hanwell IceSpy Network Receiver

•Functionality

•Key Features

•Connectors

Functionality

The Hanwell IceSpy Network Receiver is a network enabled receiver, essential to a Hanwell IceSpy monitoring System, designed for collecting environmental monitoring data from multiple Hanwell IceSpy Sensor-Transmitters at locations within a site. See Figure 177 below:

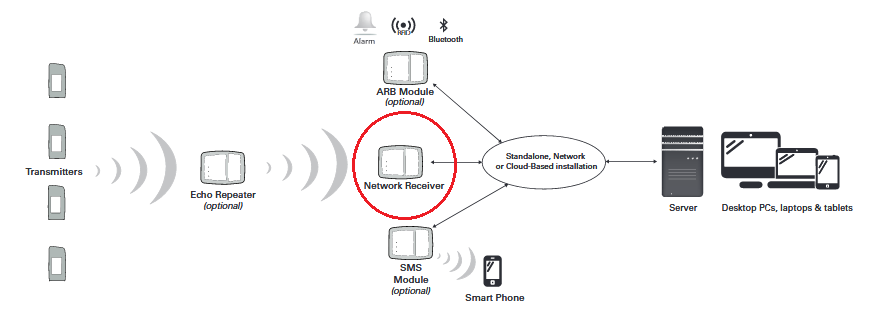

Hanwell IceSpy Network Receiver Schematic

Figure 177
Hanwell IceSpy Network Receiver Schematic

Key Features

•The Receiver uses standard TCP/IP communications protocols and is designed to be in constant communication with the software, but also has user-configurable fall-back behaviour in the event of network or power failure.

•Received data is automatically sorted and filed

•In the event of a main power failure, an on-board battery allows data from up to 50 sensors to be stored in the Unit's memory for up to 3 days.

•The front panel has LED indication for alarm (red), power (green) and communications (yellow).

•The Unit is mains powered using a 12V DC power supply.

•Hanwell IceSpy Network Receiver Datasheet.

Connectors

BOTTOM

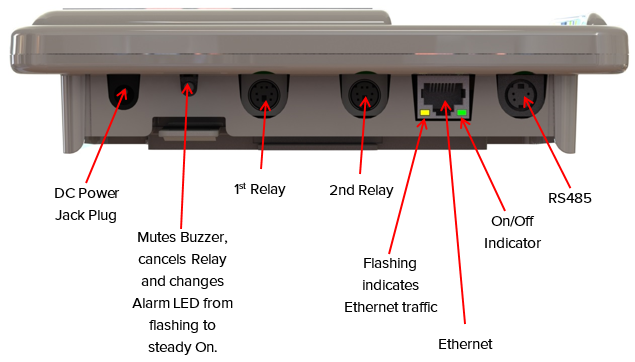

Hanwell IceSpy Network Receiver Connections

Figure 178
IN-NR001F1/2 and IN-NR001F1-ANT



TOP

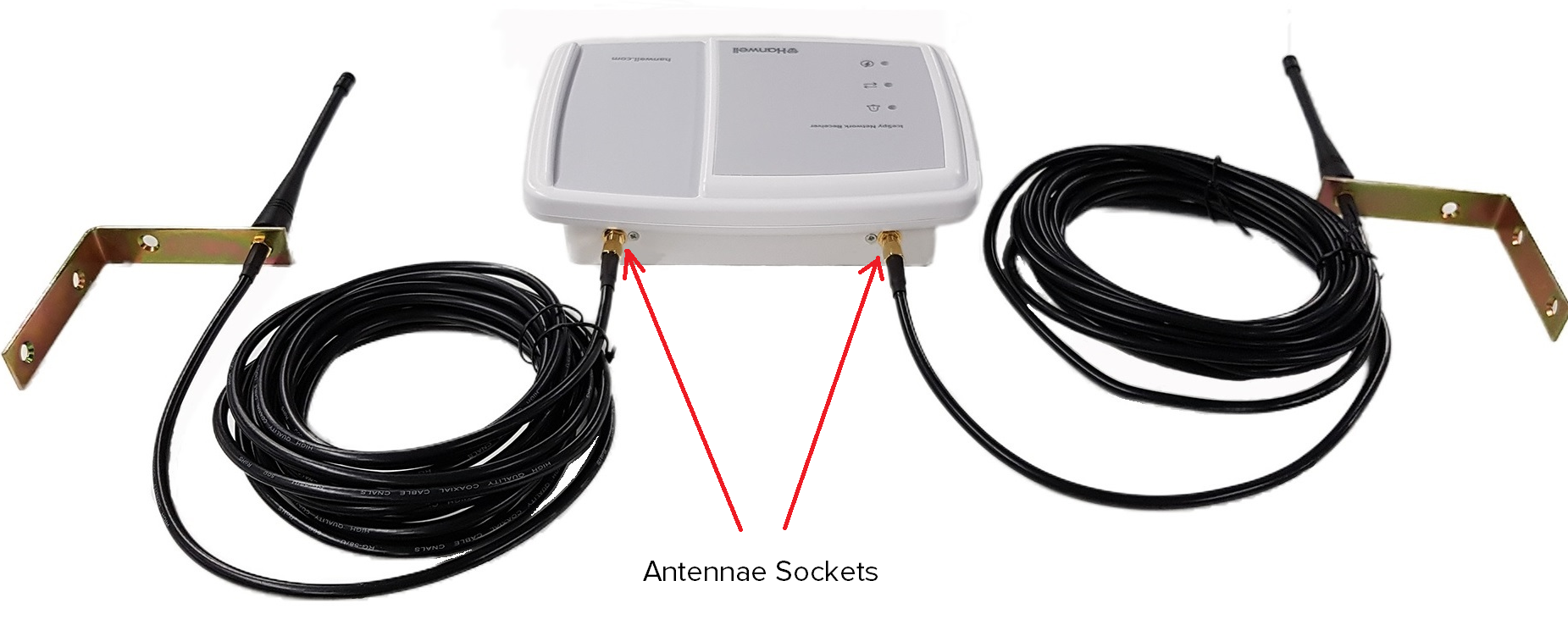

IceSpy ANT Conectors

Figure 179
IN-NR001F1-ANT
