ARB Module Keypad

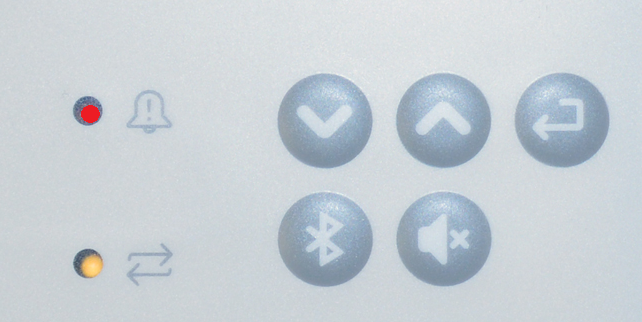

The ARB Module keypad has 5 keys; the top three are associated with alarm screen operation, the bottom two with the Bluetooth interface and Buzzer operation. See Figure 231 below:
Figure 231
Alarm Screen Operation
|
Up and Down keys |
|
Enter - See Alarm Screen. |
||
Bluetooth - See HM007 Mobile Data Upload. |
||
Mute - Silences alarm buzzer - see Relay / Buzzer and MS100 Card Operation. |
LEDs
The ARB Module has 3 LEDs:
•Red LED
The Red LED flashes to indicate that alarm screen(s) are available to view on the OLED display; see Alarm Screen.
•Amber LED
The Amber LED indicates the network status. At power up, the Amber LED will flash quickly while network settings are acquired, before switching to a slow flash while connecting to the Hanwell IceSpy server and, finally, progressing to solidly on, once connected to the EMS Server.
➢During normal use, a fast flash indicates loss of network connection and a slow flash indicates a loss of connection to the EMS Server.
•Green LED
The Green Power LED illuminates during normal operation; it will go off during a Power Fail condition.
