Power Up Sequence

As the ARB Module powers up, the Network Failure icon will appear while the Module is establishing a connection to the EMS Server. See Figure 202 below:

Figure 202

ARB Network Failure Screen

Once a connection is established, the Hanwell logo will display while the ARB Module is downloading alarm screens from the EMS Server.

The OLED display will turn off after a minute of keypad inactivity (no key presses) to conserve display life; the Module will continue to update it's alarm display screens, as normal, whilst the display is off.

Displaying Alarm Screens

The ARB Module will display alarms for Sensors associated with the specified Unit; see the Sensors section.

If the display has turned off, press any key to turn on the OLED display.

If there are no alarms to display, the ARB Module will show the No Alarms icon. See Figure 203 below:

Figure 203

ARB Alarm Screen No Alarms

When the ARB Module has alarm(s) available to display on the screen, the red alarm LED will flash approximately twice per second.

Pressing the Up and Down keys will turn the display On and also cycle through the main alarm screens for each transmitter in alarm.

Once the display is On, the ARB Module will automatically cycle through each available main alarm screen, changing screens approximately every five seconds.

Each main alarm screen shows the transmitter's name and an overview of the alarm condition. See Figure 204 below:

Figure 204

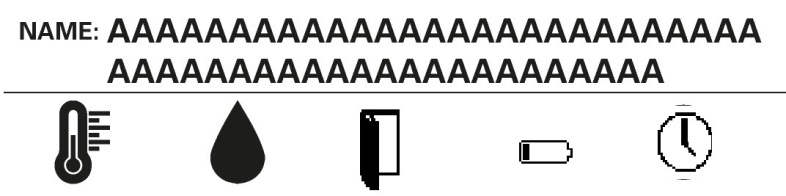

ARB Display Representative

AAAAAAAAAAAAAAAA

Sensor Name

Alarm Screen Temperature Channel

Temperature Channel - Indicates a temperature value has gone beyond pre-set alarm threshold.

Alarm Screen Humidity

Humidity Channel - Indicates a humidity value has gone beyond pre-set alarm threshold.

Alarm Screen Generic

Generic Channel - Indicates a channel, other than temperature or humidity, has gone beyond pre-set alarm threshold.

Alarm Screen Door Open

Door Open - Indicates a door has been left open for more that the pre-set threshold.

Alarm Screen Elapsed Time

Elapsed Time Warning - A signal has not been received from the Sensor for more than the pre-set limit.

Alarm Screen Battery State

Battery State Alarm - Battery should be replaced. See Replacement Batteries.

Where a transmitter has one or more channel alarms, (e.g. High High, High, Low, Low Low and / or Rate of Change alarms), pressing Enter will move down to the first sub-screen, showing the alarm details; if a second sub-screen is available, pressing enter again will move to the second screen.

Sub-Screens

The examples below show two sub-screens for a Dual-Channel Transmitter, with alarms on both channels.

Where a transmitter has only one channel in alarm, only one sub-screen will be shown.

Laboratory Fridge



Laboratory Fridge

Temperature

Alarm Screen Up Arrow 12.4ºC



Temperature

Alarm Screen Double Up Arrow 18.7ºC

Channel 1

Alarm Screen Big Arrow 22.5ºC



Channel 2



Sub-Screen Symbols

Alarm Screen Double Up Arrow

High High Alarm

Alarm Screen Up Arrow

High Alarm


Alarm Screen Thumbs Up

Thumbs Up Symbol

Alarm Screen Acknowledged

Acknowledged
Symbol

Alarm Screen Double Down Arrow

Low Low Alarm

Alarm Screen Down Arrow

Low Alarm


Alarm Screen Big Arrow

Rate of Change Alarm








Pressing Enter on the last sub-screen will display the Thumbs Up symbol, (see above), pressing Enter again will acknowledge all alarms for the transmitter and display the Acknowledged symbol, (see above).

To return to the main screens display without acknowledging alarms, press either the Up or Down key at any point.
