EMS has been designed to allow the use of Sensors where data is input manually.
•An example would be data from pest control traps. Pests caught in a pheromone traps could be counted on a weekly basis and the numbers entered into a Manual Input Sensor. This data could then be compared against temperature and humidity Sensors in the same area to see if there is any correlation between changes in temperature or humidity and insect activity.
•Adding Data to a Manual Input Sensor
•Editing a Manual Input Sensor's Data
1.From the required Site's Live View window, select Edit Mode from the main View Data menu. See Figure 734 below:
Figure 734
•The Editing and Configuration window is displayed. See Figure 735 below: Figure 735
•By default, the Sensor and Zone editing/configuration window for the Zone at the top of the left-hand menu is displayed. •To display another Zone's Editing and Configuration window, click on the entry for the required Zone in the left-hand menu. For an example, see Figure 736 below: Figure 736
2.Click on the Add Sensor button to display the Add Sensor window for the selected Zone. See Figure 737 below: Figure 737
3.Fill out the Sensor Name: field as required. 4.From the Family Type: drop-down list, select Manual Input. •At this point, the Control Device Group: and Sensor Physical ID: fields are greyed out. 5.From the Sensor Type: drop-down list, select Manual Input Sensor. See Figure 738 below: Figure 738

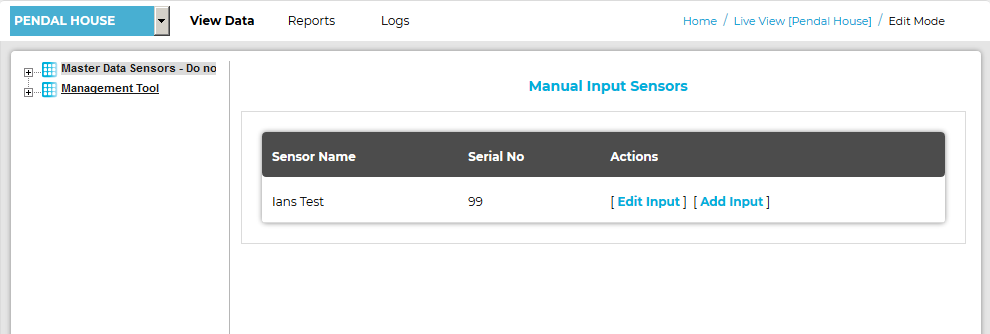

6.Add an appropriate Hardware Serial Number into the Hardware Serial No: field. 7.Click on Add Sensor to add the Manual Input Sensor to the selected Zone. To Add Data to a Manual Input Sensor 1.In the Zone's Editing and Configuration window, click on the Manual Input Sensors button to display the Manual Input Sensors window. See Figure 739 below: Figure 739

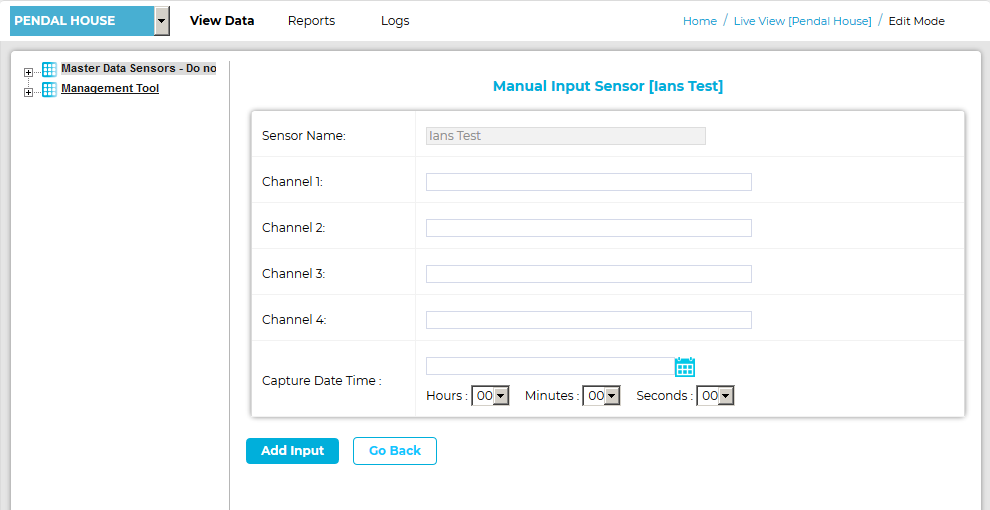

2.Click on [Add Input] to display the Manual Input Sensor [Sensor Name] window. See Figure 740 below: Figure 740
3.Enter the data into the Channel... : fields. 4.In the Capture Date Time: field: •Either, enter the date manually in the form YYYY-MM-DD or, click on the calendar icon and select the date from the displayed calendar. •Enter a time, selecting hours, minutes and seconds form the drop-down lists. 5.Click on the Add Input button. •The following message will be displayed if the Manual Input has been successfully added. See Figure 741 below: Figure 741
Clicking on the Go Back button will take you back to a Manual Input Sensor [Sensor Name] window displaying all of the Manual Input data sets for the sensor. See Figure 742 below: Figure 742

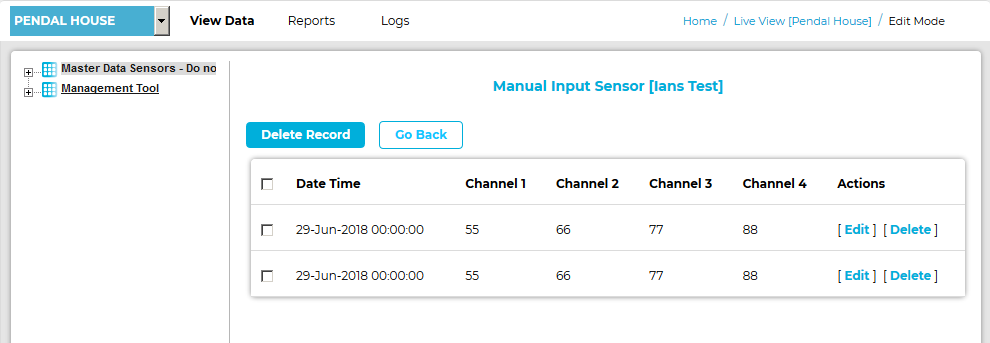

Note: This window is also displayed if you click on [Edit Input] for a selected Manual Input sensor in the Manual Input Sensors window to allow you access to the Manual Input sensor's datasets. From this window you can: •Click on the Go Back button to return to the Manual Input Sensors window from where you can edit input from or add input to the selected Manual Input Sensor. •Edit a Manual Input dataset by: i.Clicking on [Edit] on the line containing the Manual Input data set to be edited. •A Manual Input Sensor [Sensor Name] window is displayed, populated with data set's existing values. ii.Edit the Data Set's details as required. iii.Click on the Update button to submit the changes. •Delete a Manual Input Data Set by: Either: •Selecting [Delete] on the line corresponding to the Manual Input Data Set you wish to delete. Or: i.Checking the box or boxes next to the Manual Input Data Set(s) you wish to delete or checking the box next to the Date Time column heading to select all of the Sensors Manual Input Data Sets for deletion. ii.Clicking on the Delete Record button when you are happy that you are deleting the correct Manual Input Data Set(s), Either: •Clicking Yes on the displayed message window to delete the selected Manual Input data set(s). Or: •Clicking No to cancel the deletion. See Figure 743 below: Figure 743
•Clicking on Yes will display the following message. See Figure 744 below: Figure 744
|
•The Edit Mode window is displayed. See Figure 745 below:
Figure 745
•By default, the Edit Mode window for the Zone at the top of the left-hand menu is displayed.
•To display another Zone's Edit Mode window, click on the entry for the required Zone in the left-hand menu. For an example, see Figure 746 below:
Figure 746

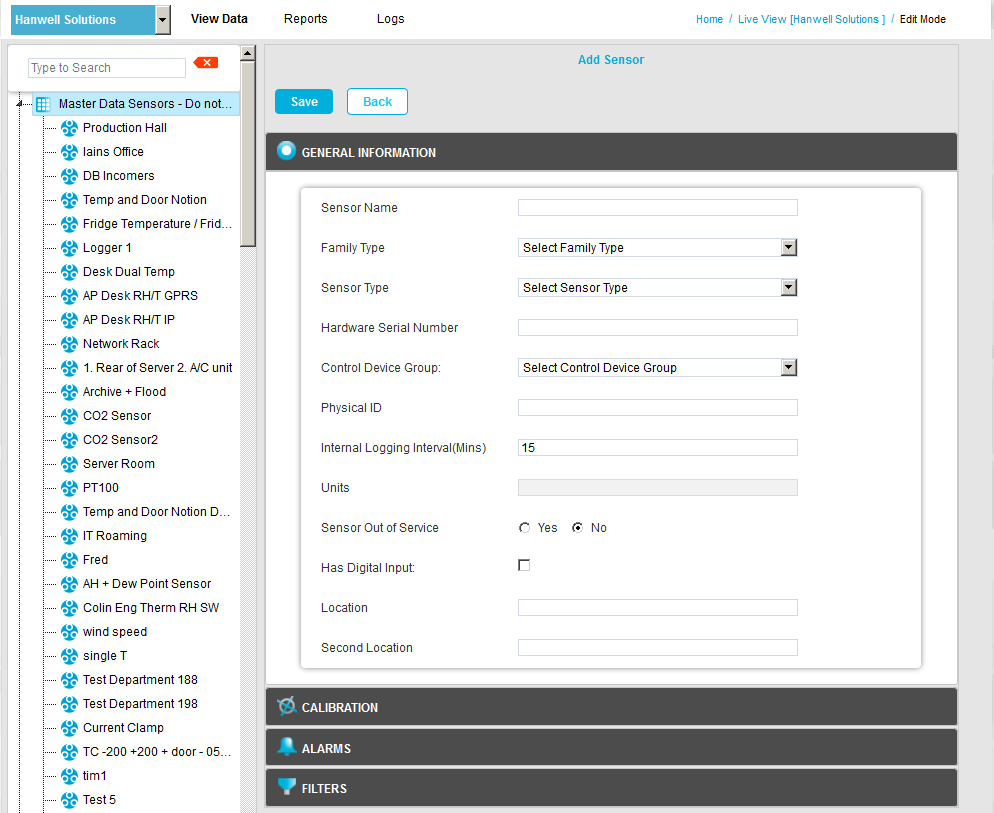

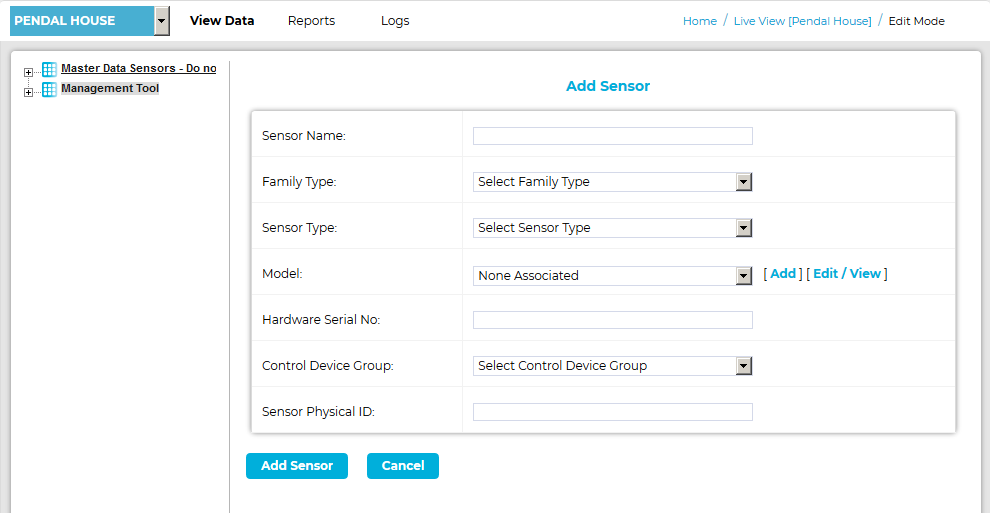

2.Click on the Add Sensor button to display the Add Sensor window for the selected Zone. See Figure 747 below:
Figure 747
3.Fill out the Sensor Name field as required.

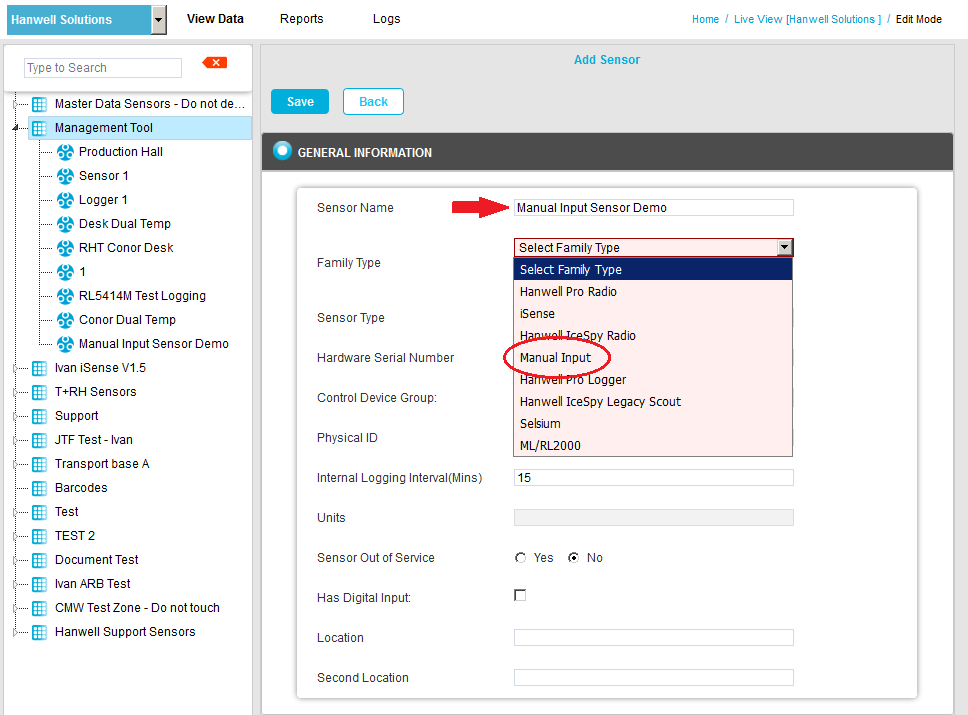

4.From the Family Type drop-down list, select Manual Input. See Figure 748 below:
Figure 748
•At this point, the Control Device Group and Sensor Physical ID fields are greyed out.

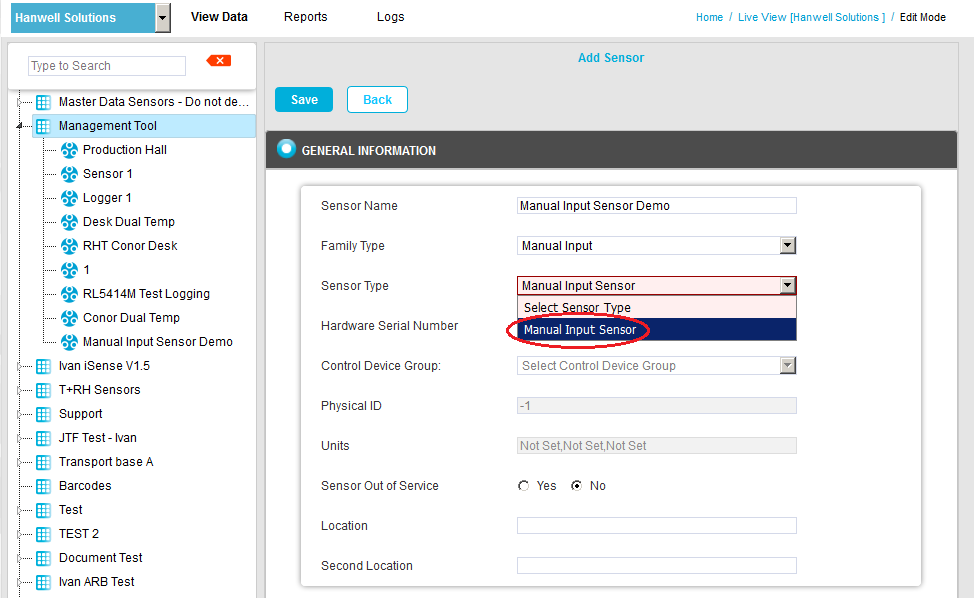

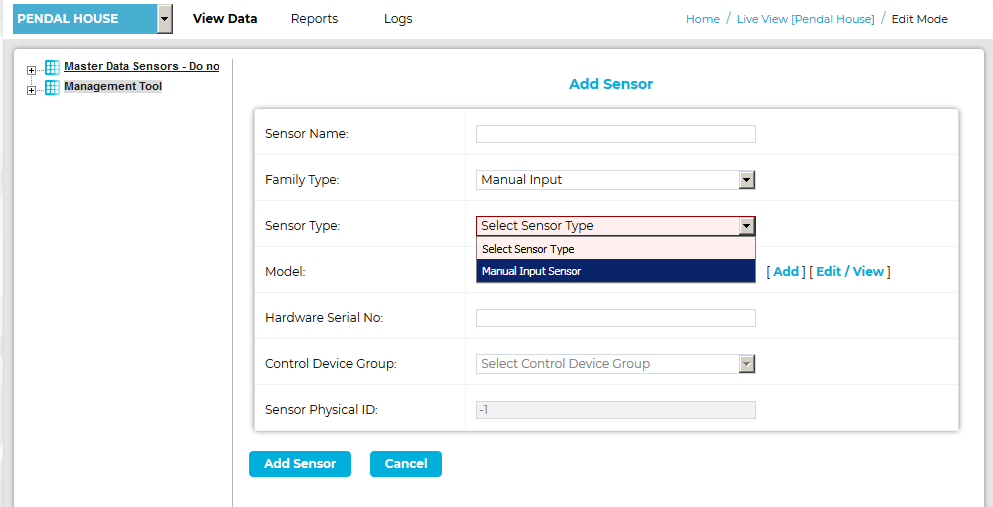

5.From the Sensor Type drop-down list, select Manual Input Sensor. See Figure 749 below:
Figure 749
6.Add an appropriate Hardware Serial Number into the Hardware Serial No: field.
7.Click on Save to add the Manual Input Sensor to the selected Zone.
•You are returned to the selected Zone's Edit Mode window which now displays the new Manual Input Sensor in its main section and in the left-hand list under the selected Zone's name.

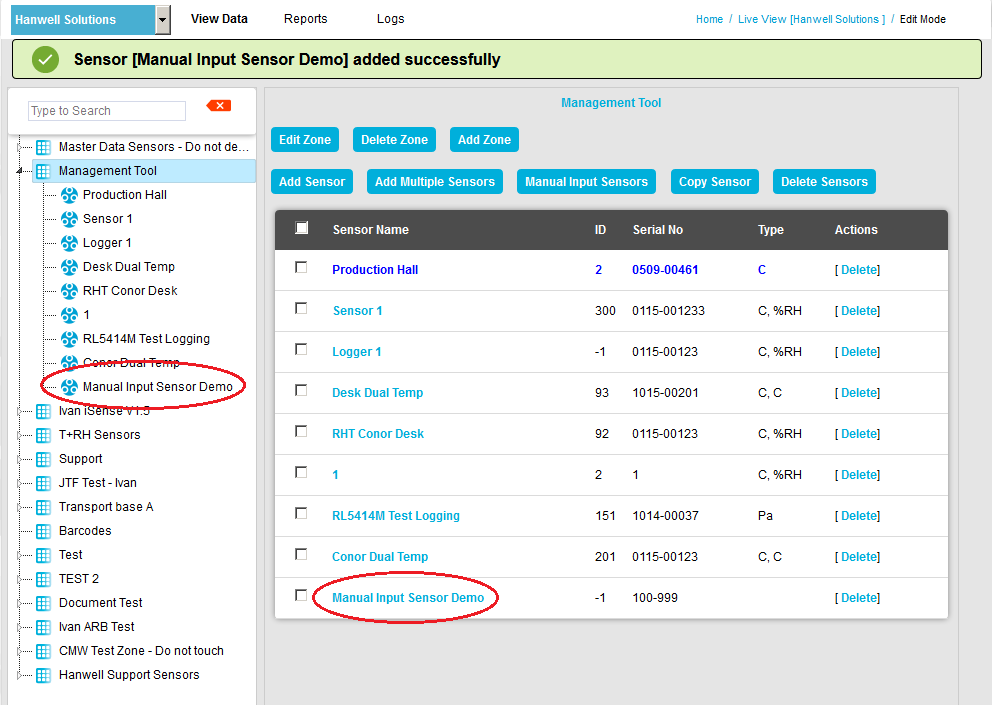

A green dialog box is also displayed confirming the addition of the Sensor . See Figure 750 below:
Adding Data to a Manual Input Sensor
1.In the Live View window, select Edit Mode from the main View Data menu.

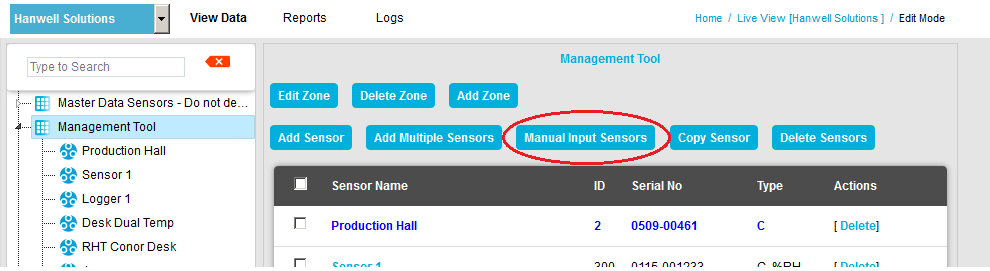

2.In the Zone's displayed Edit Mode window, click on the Manual Input Sensors button. See Figure 751 below:

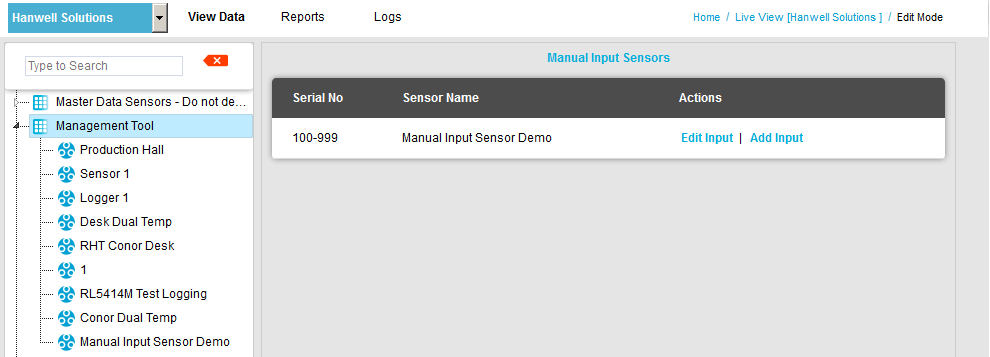

• The Manual Input Sensors window is displayed, showing the existing Manual Input Sensors in the Zone. See Figure 752 below:
3.Click on Add Input, in the row containing the required Manual Input Sensor, to display the Input Data [Sensor Name] window. See Figure 753 below:
3.Enter the required data into the Channel... : fields.
i.Either
Enter the date manually in the form YYYY-MM-DD
Or
Click on the calendar icon and select the date from the displayed calendar.
ii.Enter a time, selecting hours, minutes and seconds from the drop-down lists.
5.Either:
Click on the Submit button.
•The data is added to the Manual Input Sensor's record as a discrete dataset and you are returned to the Manual Input Sensors window.
Or:
•You are returned to the Manual Input Sensors window without the data being added to the Manual Input Sensor's record.
•Repeat Steps 3 - 5 to add further datasets to the selected Manual Input Senor's record.
Editing a Manual Input Sensor's Data
1.In the Live View window, select Edit Mode from the main View Data menu.
2.In the Zone's displayed Edit Mode window, click on the Manual Input Sensors button. See Figure 754 below:
•The Manual Input Sensors window is displayed. See Figure 755 below:
3.Click Edit Input on the line containing the Manual Input Sensor with the dataset(s) to be edited.

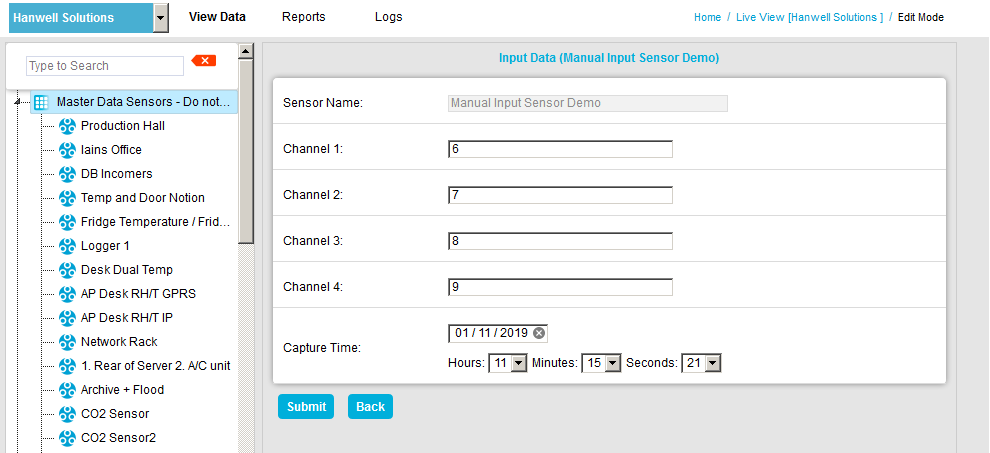

•The Manual Input Data (Sensor Name) window is displayed, populated with the selected Manual Input Sensor's dataset(s) and their existing values. See Figure 756 below:

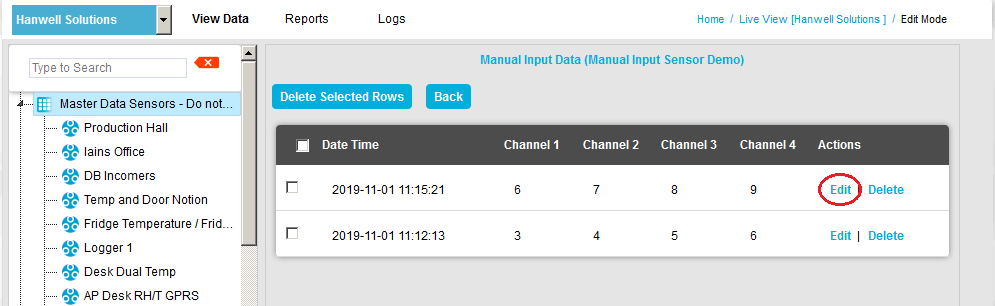

4.Click Edit in the Actions column on the row containing the dataset to be edited. See Figure 756 above.

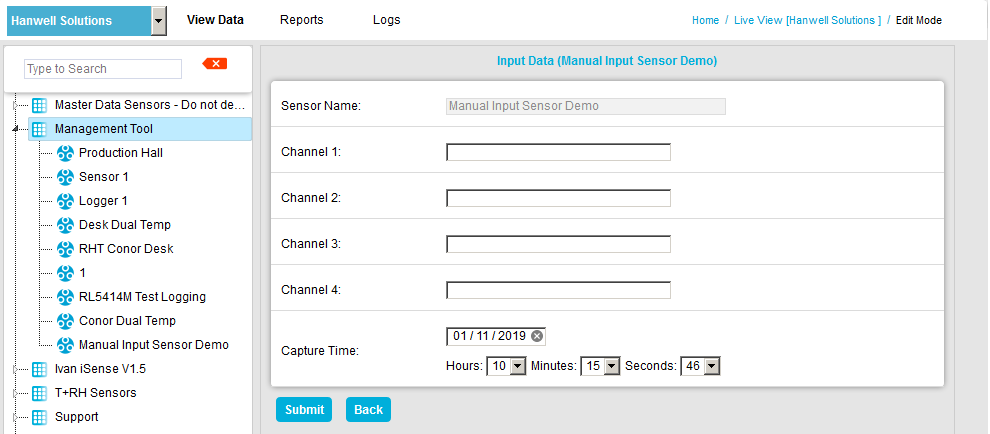

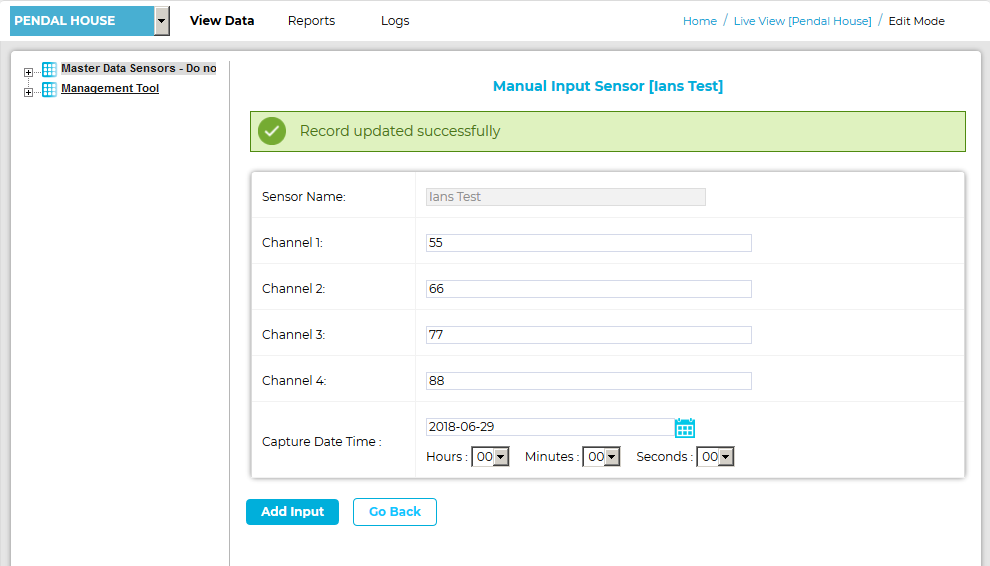

5.The Input Data (Sensor Name) window is displayed, populated with the dataset's values. See Figure 757 below:
6.Edit the displayed dataset values as required.
7.Click on the Submit button to save the changes.
You are returned to the The Manual Input Data (Sensor Name) window, which now shows the edited dataset values.
To delete a Manual Input Sensor's dataset:
1.Access the Manual Input Data (Sensor Name) window.
2.Either:
Select Delete on the line corresponding to the Manual Input Sensor's dataset that you wish to delete. See Figure 758 below:
Or:
i.Check the box or boxes next to the Manual Input Sensor's dataset(s) that you wish to delete or check the box next to the Date Time column heading, to select all of the Manual Input Sensor's datasets for deletion.
ii.When you have confirmed that you are deleting the correct dataset(s), click on the Delete Selected Rows button.
3.Click Yes on the displayed message window to delete the selected Sensors(s).
•Click No to cancel the deletion.
See Figure 759 below:
Figure 759

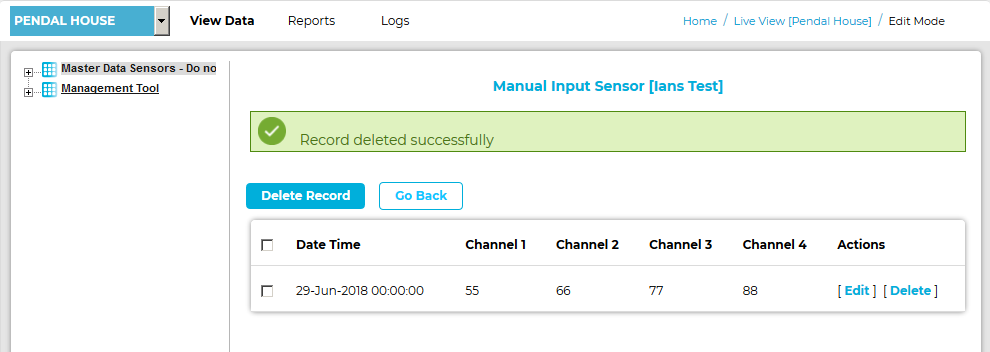

•Clicking on Yes will display the following message, confirming the deletion of the selected Manual Input Sensor's dataset(s). See Figure 760 below:
Figure 760
