Installation, Configuration and Operation of Hardware > Installation and Configuration of Additional Devices > Hanwell IceSpy > Hanwell IceSpy Sensor-Transmitters > IceSpy Linear Sensor-Transmitters (1V, 5V, 10V and 4 to 20mA) >> Hanwell IceSpy CO2 Sensor Assembly
Hanwell Solutions Product Codes
•IN-CO2-10 (10%)
•IN-CO2-5 (5%)
Description
For use with Dual Channel Voltage Input Transmitter (0 - 5V) - Part Number: IN-VT002F1 (NP3400)
Parts Supplied
•12V Regulated power supply.
•IN-LSC3.0 Hanwell IceSpy Linear Cable.

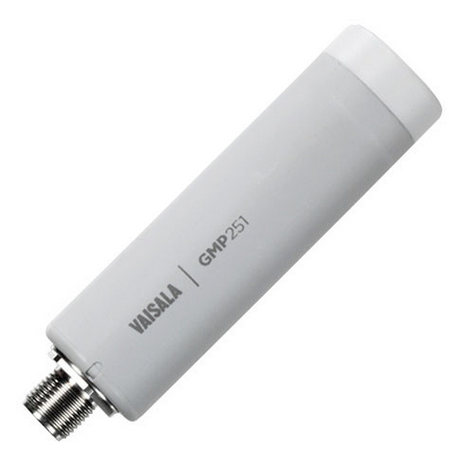

•VaisalaTM 10% CO2 Sensor (GMP251B4B0C1N1) or VaisalaTM 5% CO2 Sensor (GMP251C4B0C1N1). See Figure 187 below.
•Terminal block housing.
Figure 187
TM - Vaisala and the Vaisala Logo are registered trademarks of Vaisala Ltd.
CO2 Sensor Specifications
Accuracy @ 25°C and 1013 hPA at 5 % CO2: |
±0.1% CO2 |
||
Accuracy @ 25°C and 1013 hPA at 10 % CO2: |
±0.4% CO2 |
||
Operating Temperature of CO2 measurement: |
-40°C to +60°C (-40 to +140 Fahrenheit) |
||
Temperature Dependence with compensation |
±0.045% of reading/°C |
||
Long-Term stability 0 to 8% CO2: |
±0.3 % CO2/year |
||
Long-Term stability 8 to 12% CO2: |
±0.5 % CO2/year |
||
Temperature Range:
|
Power Supply Specifications
Output Voltage: |
12V Regulated power supply |
Output Load Range: |
0 – 1250mA |
Output Ripple & Noise: |
150mV Max |
