View/Edit Hardware Services

It is possible at some time in the future that a new piece of software could be added to the server which causes a Port conflict.

Hanwell would recommend that the new item be given a different Port number; if this is not possible then a new Port Number can be allocated to the relevant EMS Service.

Viewing Hardware Service Details

Editing Hardware Service Details

Viewing Hardware Service Details

1.Select Device management from the SYSTEM ADMIN list in the System drop-down menu. See Figure 586 below:

Figure 586

System menu - Device Management3

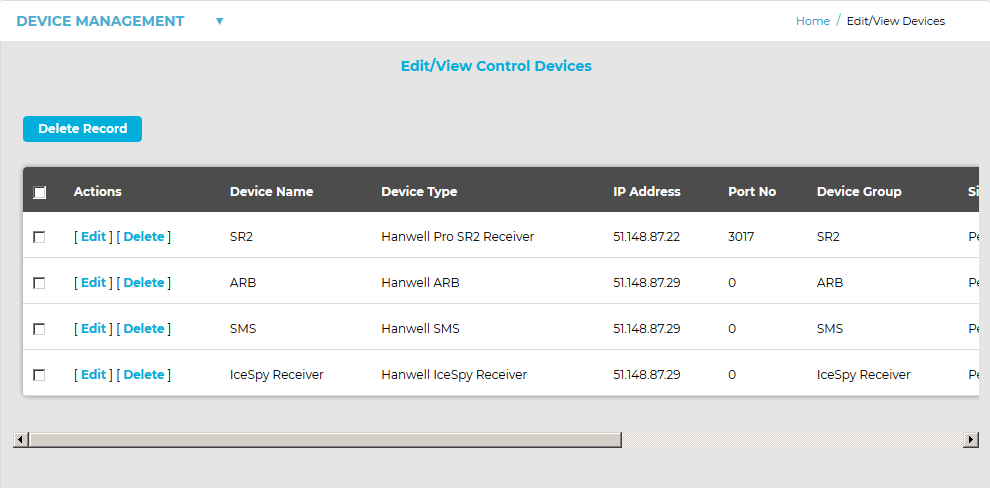

The Edit/View Control Devices window is displayed. See Figure 587 below:

Figure 587

Figure 65

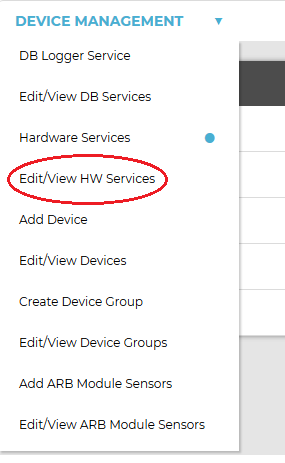

2.Select Edit/View HW Services from the DEVICE MANAGEMENT drop-down menu. See Figure 588 below:

Figure 588

Edit-View HW Services

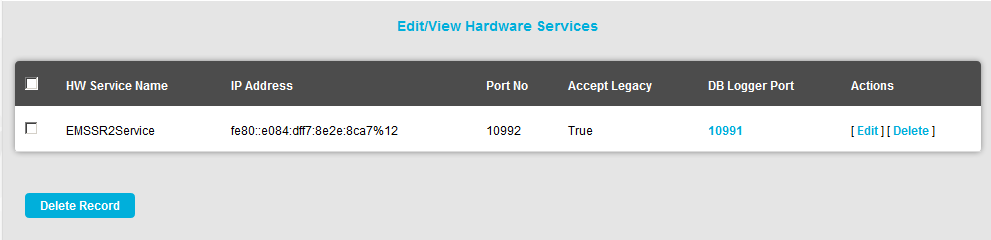

The Edit/View Hardware Services window is displayed showing details of each Hardware Service. See Figure 589 below:

Figure 589

Edit-View HW Services window

Editing Hardware Service Details

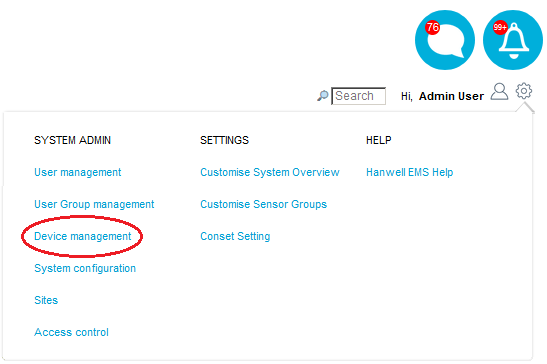

1.Select Device management from the SYSTEM ADMIN list in the System drop-down menu. See Figure 590 below:

Figure 590

System Menu-Device Management2



The Edit/View Control Devices window is displayed. See Figure 591 below:

Figure 591

Figure 65

2.Select Edit/View HW Services from the DEVICE MANAGEMENT drop-down menu. See Figure 592 below:

Figure 592

Device Management-Edt-View HW Services

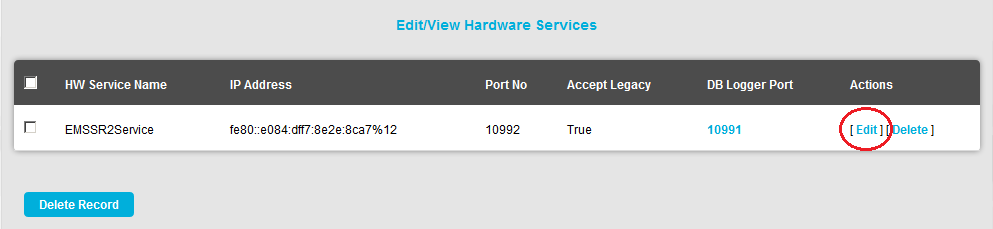

3.The Edit/View Hardware Services window is displayed. See Figure 593 below:

Figure 593

Edit-View Hardware Services Edit Circled

4.Click on [Edit] on the line corresponding to the Hardware Service to be edited. See Figure 593 above.

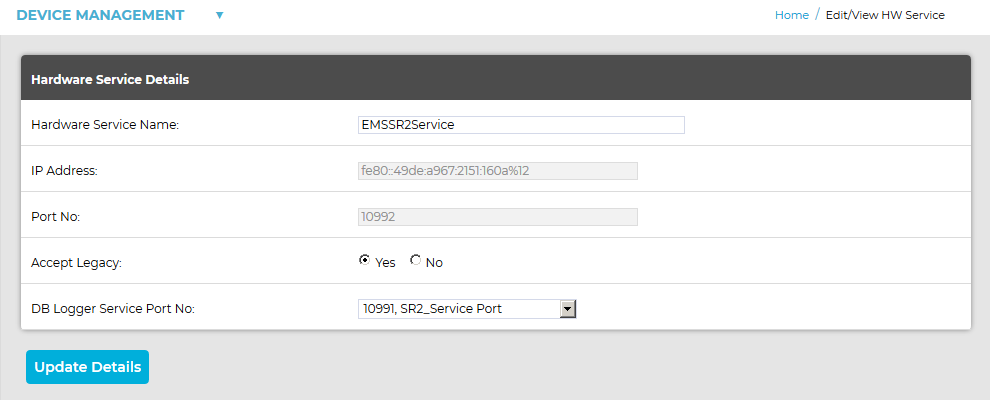

The Edit Hardware Service window is displayed. See Figure 594 below:

Figure 594

Figure 71

Note:You should only edit the IP Address or DB Logger Port Number (Port No:).

5.Contact your IT Department or IT Service Provider to get a new IP Address or DB Logger Port Number.

6.Once you have the new details number enter them into the dialog boxes next to either IP Address: or Port No: (DB Logger Port Number).

Note:The details in the Hardware Service Name:, Accept Legacy: and DB Logger Service Port No: dialog boxes should not be changed.

The 'Yes' Accept Legacy: radio button should be checked if the Control Device receives data from Sensors which pre-date the 4000/5000 USB Series.

7.Once you are happy with the details, select Update Details.

To make these changes take effect you will need to un-install the Hardware Services and re-install them.
See Document Number: IM5995 Hanwell EMS Installation Manual for details for details.
