Graphs of Individual Sensor/Transmitters

The Graph Title for an individual Transmitter/Sensor appears above the graph and is automatically generated by the System.

•The Graph Title consists of the Sensor/Transmitter Name, allocated by the User when the Sensor/Transmitter was added to the System, the ID number and the Serial Number. See Figure 1209 below:

Figure 1209



Graphs of a Zone's Sensor/Transmitters

The Graph Title for a Zone's Sensors also appears above the graph and is automatically generated by the System, but displayed in the following formats:

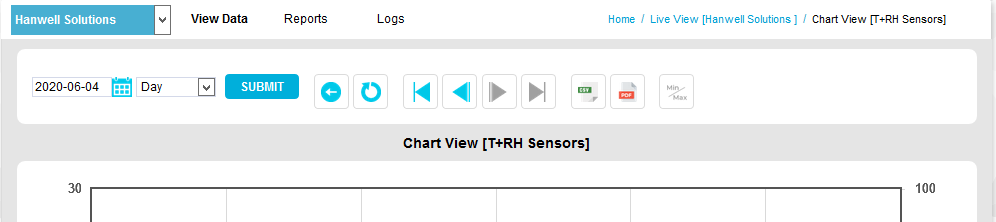

•For Graphs: Chart View [Zone's Name]. See Figure 1210 below:

Figure 1210

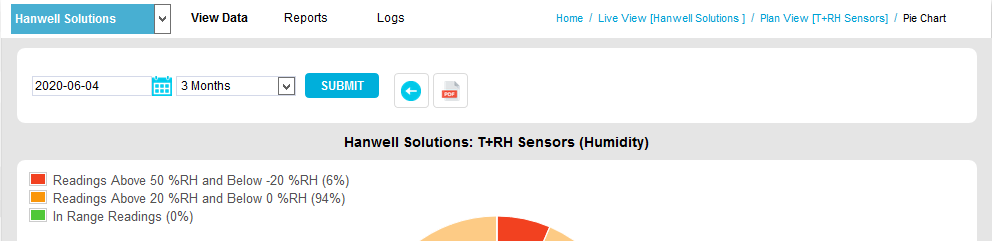

•For Pie Charts: Site Name: Zone Name (Parameter). See Figure 1211 below:

Figure 1211
