The Hanwell ThermoBarScan software enables the User to perform the initial configuration of a TME HM007, download stored data and provides real-time reading of data.
It is capable of translating barcodes with product and/or location descriptions supplied by the Customer.
•ThermoBarScan Software – Hardware Requirements
•Installing the Hanwell ThermoBarScan Software on a PC or Laptop
•Setting Up Bluetooth Communication Between PC and HM007
oDiscovery - Windows Configuration
Hanwell ThermoBarScan Software – Hardware Requirements
Either:
•PC or laptop without Bluetooth capabilities.
•Bluetooth dongle
Hanwell recommends the Belkin dongle with Widcom stack.
Or:
•Bluetooth enabled PC or laptop.
Installing the Hanwell ThermoBarScan Software on a PC or Laptop
Note: | If you need to install a Bluetooth dongle, please install this before installing the ThermoBarScan software. |
1.In your browser, navigate to: http://www.supportftp.Hanwell.com/Software/IMC%20ThermoBarScan%20V8.7.0.0.zip

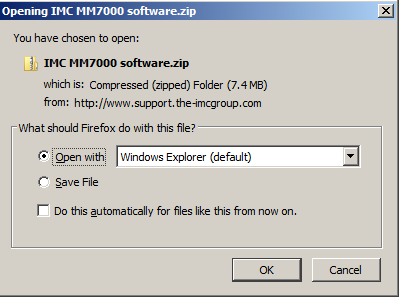

•The following window is displayed. See Figure 260 below:
Figure 260
2.Check the Open with toggle.
Note: | To save the Hanwell HM007 software.zip file and install the software later, check the Save File toggle. |
3.Click OK.
•The Hanwell HM007 software folder is displayed in Windows Explorer.
4.Open the folder and double-click on the setup file.
•The Open File – Security Warning window is displayed. See Figure 261 below:
Figure 261
5.Click on Run.
•The User Account Control window is displayed.
6.Click Yes.

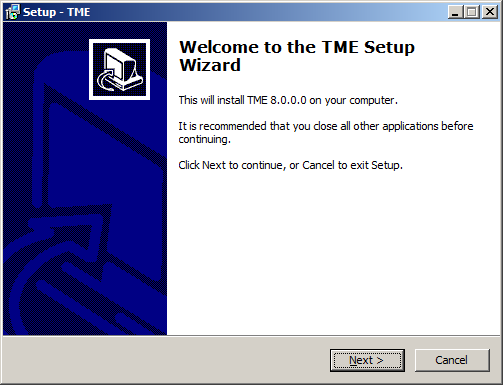

•The Setup - TME Welcome to the TME Setup Wizard window is displayed. See Figure 262 below:
Figure 262
7.Click on Next >.
•The Setup - TME Select Destination Location window is displayed. See Figure 263 below:
Figure 263
8.Select a destination folder to install the TME software into.
9.Click on Next >

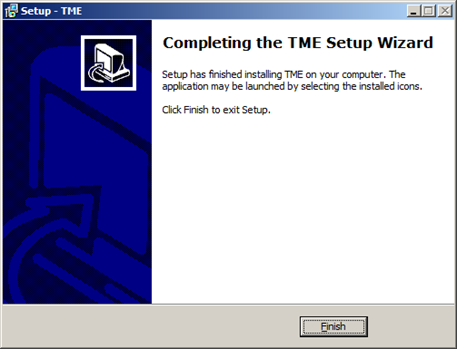

•The Setup – TME Completing the TME Setup Wizard window is displayed. See Figure 264 below:
Figure 264
10.Click Finish.
•The ThermoBarScan software will automatically create a shortcut icon on your desktop so the software can be easily accessed.
11.Start the ThermoBarScan software by clicking on the desktop icon. See Figure 265 below:
Figure 265

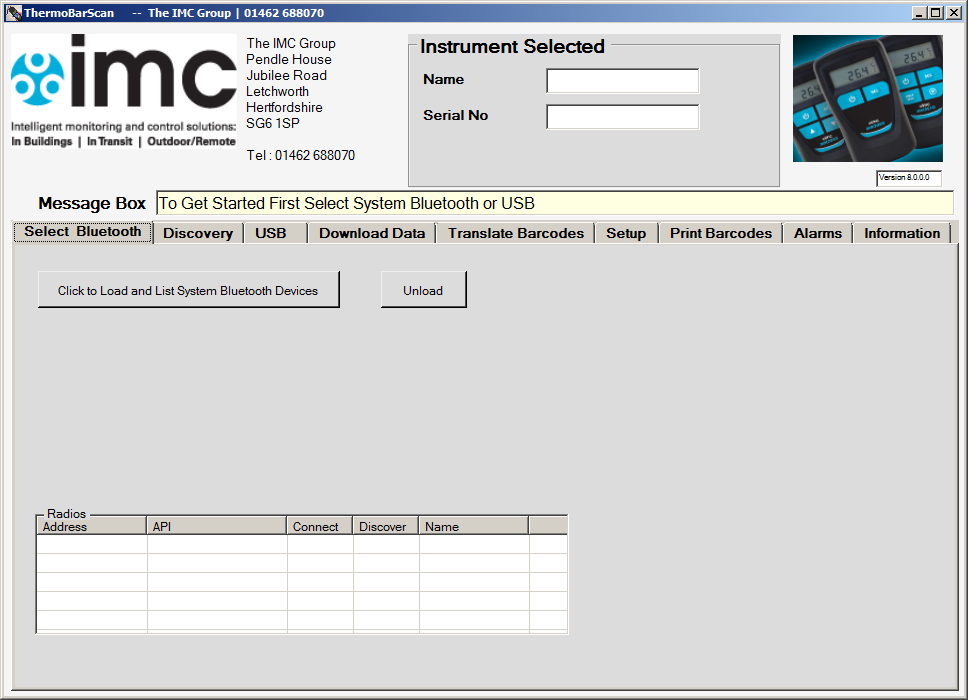

12.The ThermoBarScan interface window is displayed. See Figure 266 below:
Figure 266
•You can now progress to setting up Bluetooth communication between the PC on which the ThermoBarScan software is installed and the HM007 to enable its initial configuration.
Note: | The HM007’s Name and Serial number will only be displayed when Bluetooth communication has been established between the PC on which the ThermoBarScan software is installed and the HM007/ThermoBarScan device. |
Setting Up Bluetooth Communication Between PC and HM007
To configure Bluetooth communication between the PC on which the ThermoBarScan software is installed and an HM007:
1.In the ThermoBarScan interface window (see Figure 266 above) click on the Select Bluetooth tab.
2.In the displayed window, select Click To Load And List System Bluetooth Devices.

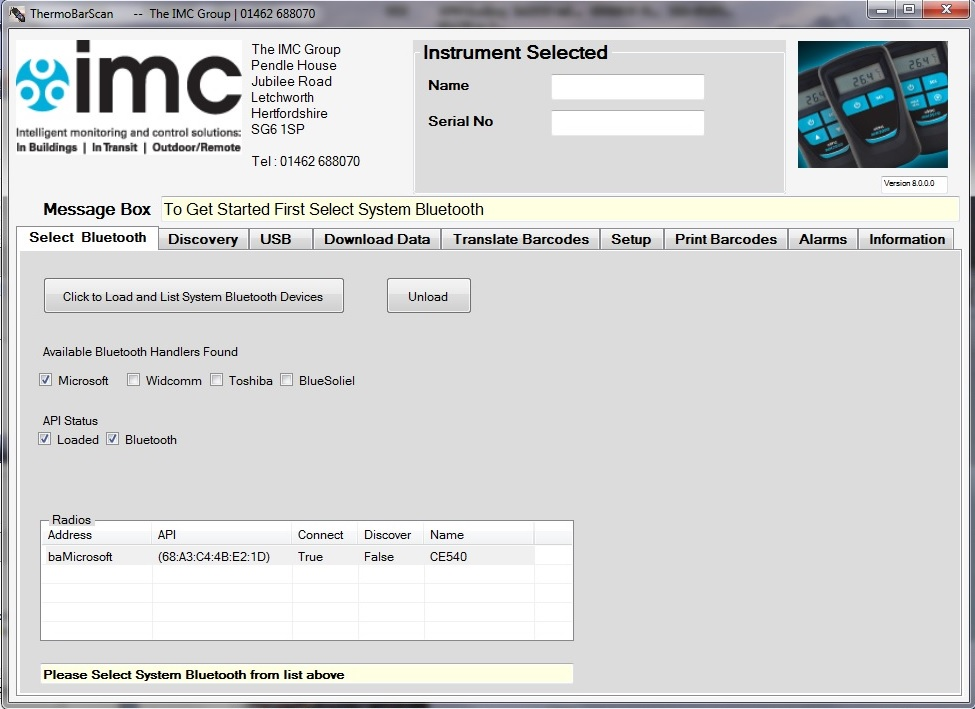

•You should now see at least one of the driver boxes ticked and any Bluetooth devices within Bluetooth range will be displayed with their Bluetooth addresses shown. See Figure 267 below:
Figure 267
Note: | Hanwell recommends either Microsoft or Widcom as drivers. |
3.Click on the HM007/ThermoBarScan device you wish to connect to and define parameters for.
•Once connected, the software will display the instrument’s Name and Serial Number.
•To swap between HM007/ThermoBarScan devices to define their parameters, simply click on another entry in the table.
4.Make a note of the displayed Name and Serial Number.
5.Turn on your HM007 and press the Bluetooth button. See Figure 268 below:
Figure 268
•The word ‘Blue’ is shown on the Unit’s display, signifying that the instrument is now in Bluetooth mode.
Note: | The instrument must remain with the Bluetooth enabled (showing the word ‘Blue’) during Discovery. |
1.Select the Discovery tab.

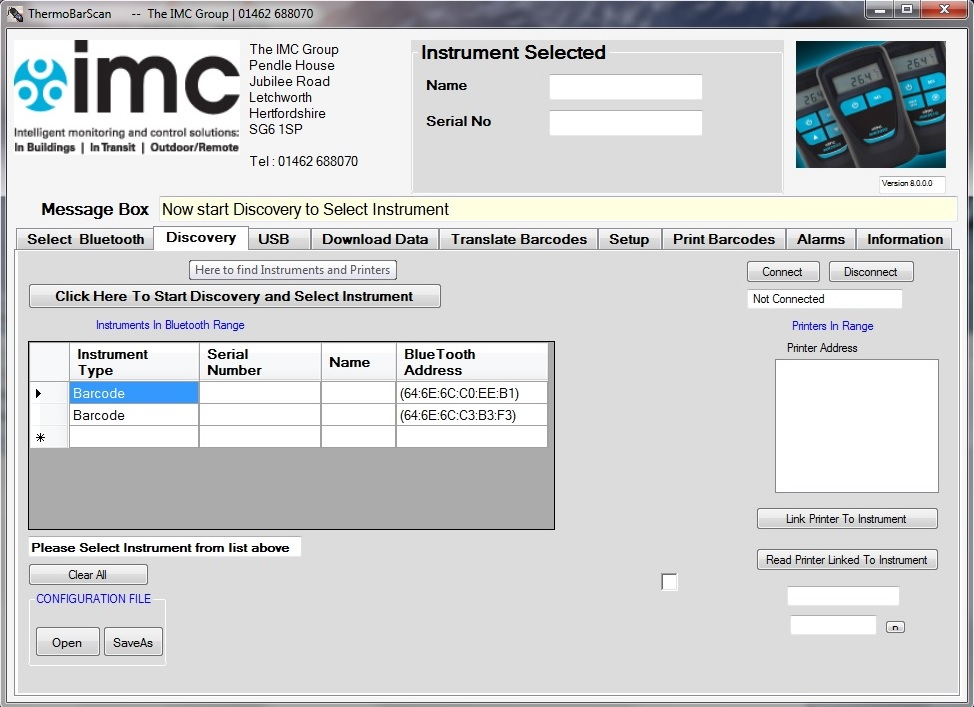

2.Click on Click Here To Start Discovery And Select Instrument. See Figure 269 below:
Figure 269
•The devices within Bluetooth range will be displayed and their Bluetooth addresses shown.
Note: | The MM7000’s Name and Serial number will only be displayed when Bluetooth communication has been established between the PC on which the ThermoBarScan software is installed and the HM007/ThermoBarScan device. |
3.Click on arrow next to the HM007 you wish to connect to (refer to Name and Serial Number noted above).
•The line containing the selected HM007 is highlighted.
4.Once connected, the software will display the HM007’s Name and Serial number.
•To swap between HM007 devices, simply click on another listed HM007.
Discovery - Windows Configuration
Windows 7 1.Go to the Control Panel. 2.Search for ‘Bluetooth’. 3.Click on Change Bluetooth settings. 4.In the displayed Bluetooth Settings window, check the Allow Bluetooth devices to find this PC option. 5.Click on the Apply button. Windows 8 and 10 1.Go to Settings. 2.Click on Devices. 3.In the displayed window, click Bluetooth in the left hand menu. •The Bluetooth ‘switch’ is set to On. 4.Under Manage Bluetooth Devices, click on Related Settings - More Bluetooth options •This will open the Bluetooth Settings window. 5.Click on the Options tab. 6.Check the Allow Bluetooth devices to find this PC option in the Discovery section. 7.Click the Apply button. If you experience further issues with Bluetooth connectivity, please contact Hanwell. |

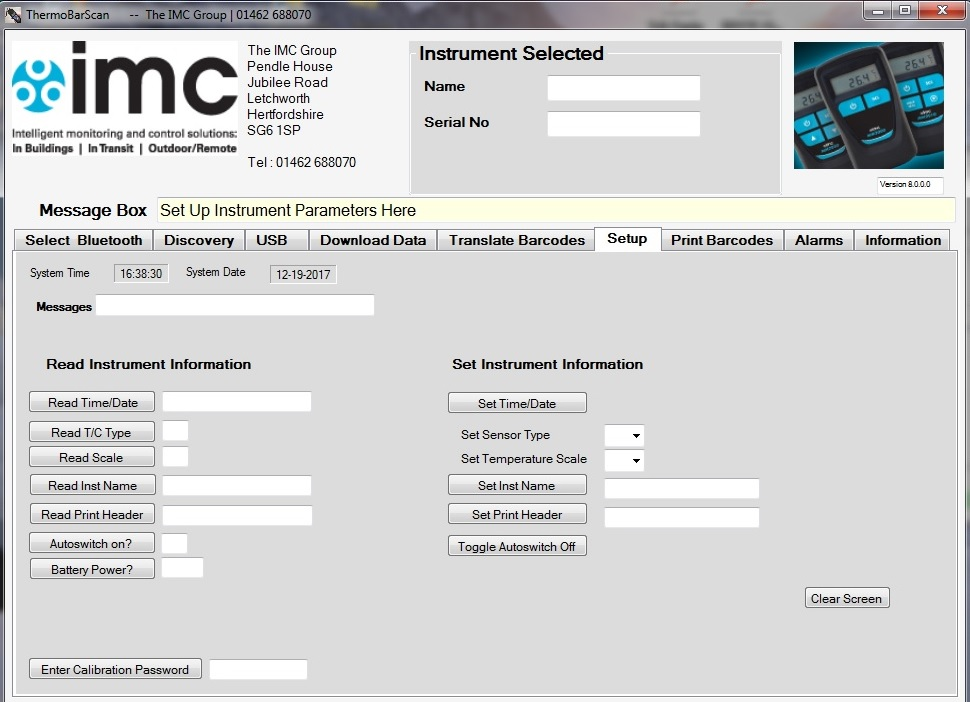

You can now carry out initial setup of the HM007 by defining the parameters accessed by clicking on the Setup tab in the main ThermoBarScan window. See Figure 270 below:
Figure 270
•Set Time and Date – sets the time and date.
•Sensor Type – sets the thermocouple type.
•Set Temperature Scale – sets the temperature scale e.g. °C / °F.
•Set Inst Name – allows you to enter a unique name for the HM007.
•Set Print Header – allows you to assign a heading for the print reports when using the Bluetooth Printer.
Other User selectable features include:
Autoswitch on? – allows you to check to see if Autoswitch off function has been enabled.
Battery power? – allows you to monitor battery life.
